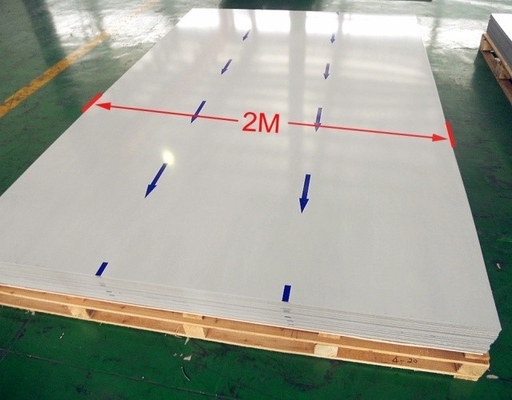

2 Meters Width Aluminum Composite Panel With Precision Coating 2mm—4mm Thickness
Descrition:

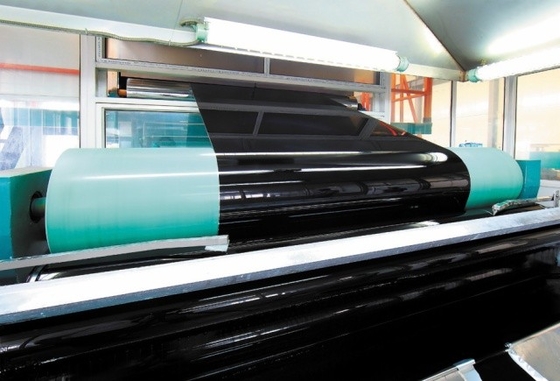

MAXL precision coating line is to coat the chemosynthesis aluminum roll with various paints according to the needs of the customers. MAXL has an advanced three-roller reversal precision coating machine that can operate under sealed, dustless condition so that the thickness of coating and its outer appearance are under proper control. The oven is divided into four temperature-controlled areas to make the coating reach the best condition in its solvent resistance, hardness, flexibility and good glossiness, strong adhesive force and corrosion resistance.
Features of MAXL 2m special Aluminium Composite Panel
The only domestic manufacturer to help designers to achieve long-span,large-format design style. Easy to processing cut and avoid any corner wastage,save profile and installation costs
Product Specification
Thickness: 2mm—4mm; recommend 3mm
Length: For convenient transportation, less than 5800mm is recommended
Aluminum thickness: 0.2---0.4mm
Test Report
|
Item |
Technical Requirements |
|
|
Exterior panel |
Interior panel |
|
|
Coating Thickness(test) |
≥25μm |
≥16μm |
|
Coating Adhesive(test) |
≥1 step |
|
|
Gloss Tolerance(test) |
limit of error≤10 |
|
|
Pencil Hardness(test) |
≥HB |
|
|
Boiling Water Resistance(test) |
No change |
|
|
Color Difference test |
≤2.0 |
— |
|
Acid Resistance test |
No change |
|
|
Alkaline Resistance test |
No change |
|
