Mill Finished Surface 3003 Checkered Aluminium Sheets / Custom Aluminium Sheeting Products
Descrition:

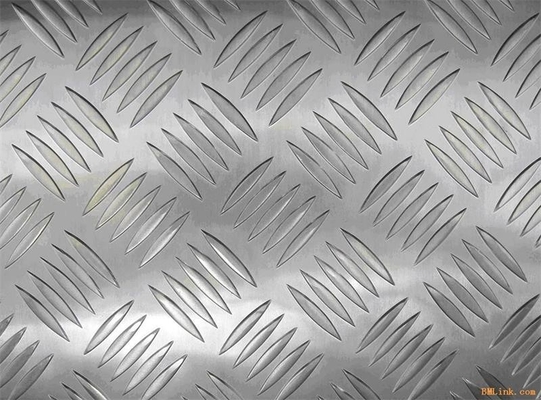

Checkered Aluminium Plate is wildly used as a decorative material in flooring, table, tank,etc.
Some photos below shows the applications.

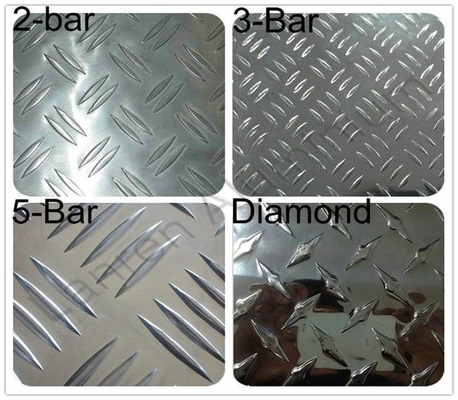

MAXL adopts 2-bar, 3-bar, 5-bar, diamond style and so on.
And it is still separated in low bar and high bar.
Some photos below show the style.
Specifications:
|
Alloy |
Temper |
Size |
|||
|
(mm) Thickness |
(mm) Width |
(mm) Length |
mm) Embossing depth |
||
|
1070,1060,3003 1050,1200,3A21 |
H14 |
0.30~6.0 |
≤1500 |
<6000mm |
0.08~0.25 |
Thickness tolerance: ±0.01mm
Width and length tolerance: ±2mm
|
Material |
Chemical Composition |
||||||||
|
Si |
Fe |
Cu |
Mn |
Mg |
Zn |
Ti |
other |
Al |
|
|
1070 |
0.20 |
0.25 |
0.30 |
0.03 |
0.03 |
0.03 |
0.03 |
0.03 |
99.70 |
|
1060 |
0.25 |
0.40 |
0.05 |
0.05 |
0.05 |
0.05 |
0.03 |
0.02 |
00.60 |
|
1050 |
0.25 |
0.40 |
0.05 |
0.05 |
0.05 |
0.05 |
0.03 |
0.03 |
99.50 |
|
1050A |
0.25 |
0.40 |
0.05 |
0.05 |
0.05 |
0.07 |
0.05 |
0.03 |
99.50 |
|
3A21 |
0.60 |
0.70 |
0.20 |
1.0-1.16 |
|
0.10 |
0.15 |
0.10 |
surplus |
|
3003 |
0.60 |
0.70 |
0.05-0.20 |
1.0-1.5 |
|
0.10 |
|
0.15 |
surplus |
Packing and Loading
The most common problem is the damage during the transportation, it occurs if the package and load skill is not enough.
MAXL has more than 10 years in exporting for the packing and loading to avoid any risk of damage during the transportation.
Choose MAXL, you are not only choosing the good quality products but also the professional service.
Local agents without language problem and time difference is ready to serve you at any time.
