Pilfer Proof Caps Aluminium Sheets Anti - Corrosion 0.20mm Thickness
For capacitor making /medicine packing/outer packing/food foil/house foil
Alloy: 8011
Temper: H14, H16
Thickness:0.18-0.24mm
Width: 60-800m
Length: 600-900mm
|
Application of 8011 aluminum sheet for twist off cap |
||||
|

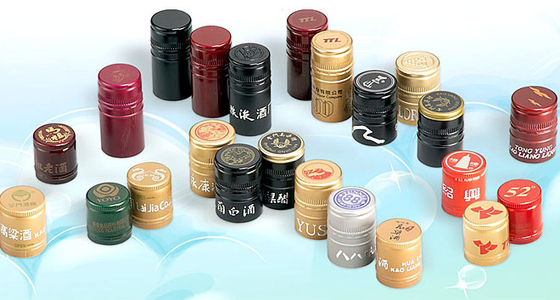

Wine bottles, Pilfer-proof caps, ROPP cap, Pharmaceutical cap, etc |
||||
|
Mechanical Property for Continuous Casting |
||||
|
Alloy |
Temper |
Thickness (mm) |
U.T.S (Mpa) |
Elongation (%) |
|
8011 |
H14/H16 |
0.18~0.24 |
185~205 |
>=2 |
|
Mechanical Property for Direct Casting |
||||
|
Alloy |
Temper |
Thickness (mm) |
U.T.S (Mpa) |
Elongation (%) |
|
8011 |
H14 |
0.18~0.24 |
125~155 |
>=2 |
Chemical Composition:
Si:0.50-0.90%Max
Fe:0.60-1.0%Max
Cu:0.10%Max
Mn:0.20%Max
Mg:0.05%Max
Cr:0.05%Max
Ni:- Zn:0.10%
Ti:0.08%Max
Remains: Al
Tensile Strength: 125-165Mpa
Elongation:2%Min
Earing:2%Max
Surface Quality: been free from Oil Stain, Dent,Inclusion, Scratches,Stain, Oxide Dicoloration, Breaks,
Corrosion,roll marks, dirt streaks and other defect which will interfere with use.
Application: PP Caps, Vial Seals, Plain Tear Off Seal, Flip Off Seal, etc.
Certificate: ISO:9001:2000 FORM A,E or CO , Quality Certificate From Mill
Packing: Strong wooden cases or pallet, and about 19 ~ 20 tons in one 20' container
