PVDF, PE High Intensified Aluminium Composite Panel For Outdoor Building Decoration
Descrition:

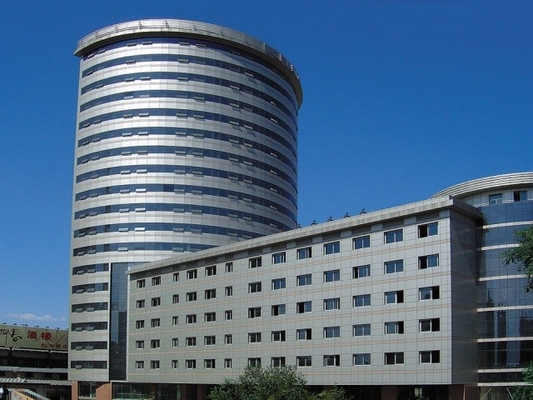

Aluminium Composite Panel is wildly used in building decoration for wall curtains, wall cladding, ceilings, etc. Applied in business building, hospital, subway station, hotel to replace the aluminium plate. It has features such as light, easy installation, fire proof and so on.

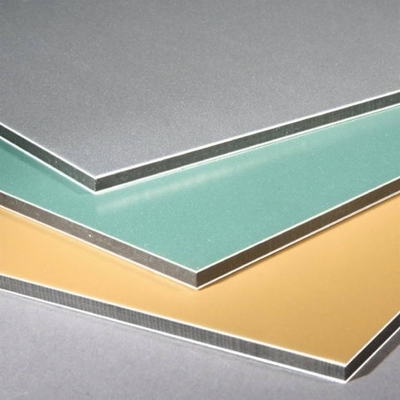

Structure:
|
Front : aluminium alloy sheet coated with PVDF paint on surface |
|
|
Back : aluminium alloy sheet coated with polyester paint Surface coating thickness: 32μ±1μ Aluminium alloy: 3003 H24 Aluminium Skin thickness: 0.3mm,0.4mm,0.5mm |
|
Dimentions:
Thickness: 3mm, 4mm, 6mm, 8mm
Aluminium: 0.3mm, 0.4mm, 0.5mm
Width: 1220mm, 1250mm, 1500mm, 1570mm, 2000mm
Length: 1000mm ~ 6000mm
Weight: 0.5/4mm is 5.6 kg/m²
0.4/4mm is 5.2 kg/m²
0.3/4mm is 4.8 kg/m²
Standard:
A) West Europe standard ( Germany DIN Standard)
B) The EAST Europe standard ( Russian standard )
C) The common wealth standard (U.K BS Standard )
D) The North America ASTM standard
E) The South American standard (Mexico Standard ) and so on.
Feature:
A) Light weight, flat surface and high strength.
B) Excellent heat insulation ,sound insulation, fire-resistance, acid-resistance, alkali-resistance.
C) Easy to install.
D) Can be recycled, environment friendly.
Service:
Ø Quick response, any request can be replied within 24 hours.
Ø Fast delivery, will be delivered within 15 working days after the confirmation.
Ø Local agents, without any language problem and time difference.
