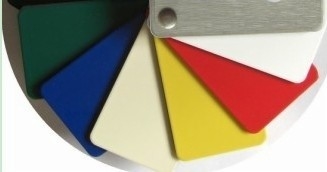

Antistatic Aluminium Composite Panel With High Protection Meets Tandard SJ / T11159-1998
Descrition:
1 The resistant of normal Aluminium Composite Panel is high, more than 1.0 × 109Ω
2 The antistatic Aluminium Composite Panel conforms to national electronic industry standard SJ/T11159-1998.
|
Raw material |
Product specifications |
|
Base material of aluminum panel:high strength aluminum alloy coils |
thickness:3-6mm,4mm is recommended |
|
PE core:non-toxic low density polythene |
width:1000-2000mm. 1220mm,1250mm,1500mm ,2000mm are recommended |
|
Surface coating:fluorocarbon coating |
length:maximum is up to5800mm,2440mm,3050mm,4050mm are recommended |
|
|
Thickness of aluminum sheet:0.3 mm-0.5mm |
Features of MAXL Antistatic Aluminium Composite Panel
1There is no static dust adheres on the surface, offer us safe and tidy surroundings.
2Excellent chemical properties: excellent chemical stability such as high performance of acid, alkali, oil and salt resistance.
3 Excellent physical properties: high surface flatness, hardness, rigidity and strength, and low areal density.
4 Highly economical: convenient for flat transportation, processing, and molding; lowexpenses in transportation, construction and management.
Test Value:
|
No |
Item |
Technical Index |
Test Value |
Result |
|
1 |
Surface resistance |
≤1.0×106Ω |
2.55×104Ω |
Passed |
|
2 |
Volume resistance |
1.0×106～1.0×109Ω |
5.72×106Ω |
Passed |
