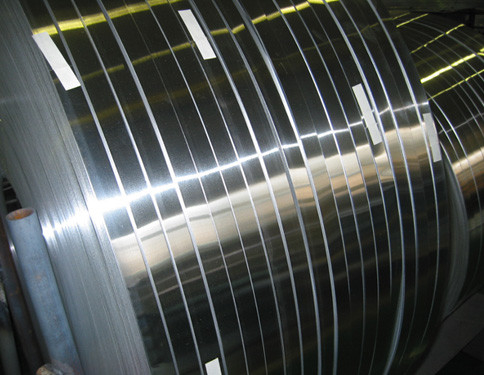

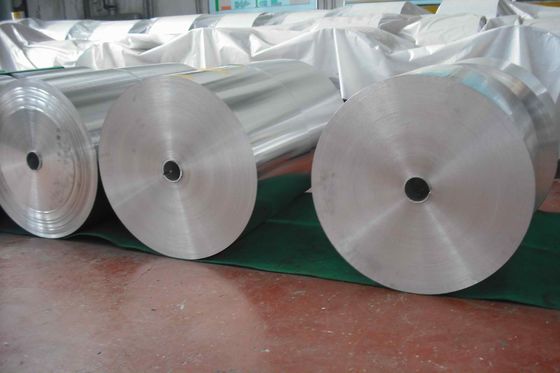

1060, 1070 O Aluminium Strip Coil For Refrigerator Freezers ISO9001
High conductivity aluminium strip 1060 O for transformers is widely used in transformers,including oil type transformers and dry type transformers.It has good forming property,high corrosion resistance,good weldability and conductivity.
There is no burr on the edge of high conductivity aluminium strip 1060 O.Surface atomization treatment makes high conductivity aluminium strip 1060 O surface get to a brighter and cleaner level.
High conductivity aluminium strip 1060 O quality has always been to maintain industry leading position with the domestic leading technology.Rational design and renovation without changing the precision of the 1250 highspeed slitting line make the height of burr less than 0.01 mm and the side camber lower than the standard of industry to enhance the commonality,processing capacity and scope also increase accordingly.
Our company has a high quality source of raw materials.Customers are the first and high quality of products is our principle.We focus on the raw materials information and raw materials inspection to ensure the quality of the raw materials.
Specifications:
|
Product |
Alloy |
Temper |
Thickness |
Width |
I.D. |
|
Transformers strip coil |
1070 1060
|
H18 H14 H24 O |
0.2-4.0mm |
10-550mm |
Ф75 Ф150 Ф305 Ф200 |
Main technical parameters
|
chemical composition Alloy |
Si |
Fe |
Cu |
Mg |
Mn |
Ai |
|
1060 |
0.25 |
0.35 |
0.03 |
0.03 |
0.05 |
99.6 |
|
1070 |
0.20 |
0.25 |
0.04 |
0.03 |
0.03 |
99.7 |
|
Alloy |
Thickness (mm) |
Tensile (Mpa) |
Resistivity (20℃) |
Thermal Expansion (/℃) |
% Elongation (50mm) |
|
1060-0 1070-0
|
﹥0.2-0.3 ﹥0.3-0.5 ﹥0.5-0.8 ﹥0.8-1.3 ﹥1.3-4.0 |
55-95 |
≤2.9×10-8
|
2.35×10-5 |
≥15 ≥20 ≥25 ≥30 ≥35 |
Applications:
The main products are refrigerator freezers with high surface-quality aluminum alloy strip, aluminum strip cable material , capacitor shell with aluminum strip material, aluminum-based anti-theft strip, aluminum plastic composite pipe aluminum alloy strip, venetian blinds with the Alloy Strip.
Standard packaging
Fumigation-free of wood pallets,corrugated paper,paper angle protector,PVC film and desiccant.
Our company adopts developed packaging technology and packaging style to ensure the packaging quality.We have three kinds of packaging,eye to sky,eye to wall and cases packaging.We are uniquen in the industry,this technology can ensure that the products will not be affected with damp,deformation,as well as the fold change.Also,we roll a layer of paper into every two layers of strips to protect them from being wet.
