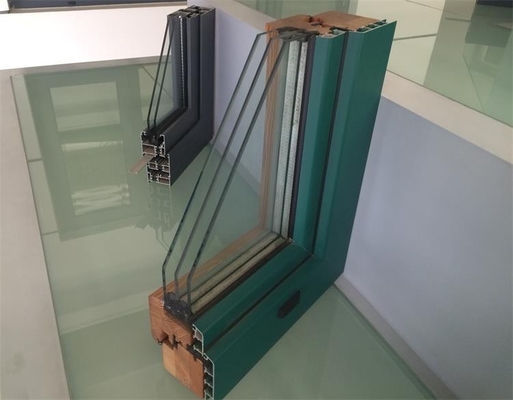

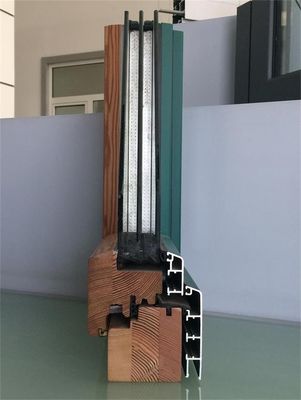

Aluminium Window Profiles / Green Color Three Layers Glass Combined Windows
Descrition:
Three layers glass aluminium window profiles are designed for high-end market. And it is applicated in high grade business building and apartment which has strict requests in sound insulation.
It has many features such as beautiful looking, super sound and heat insulation,easy install and environment friendly and so on.
Customer desgin could be acceptable.
Company Brief Intruduction:
MAXL is the professional manufacturer of aluminium products including aluminium rod, aluminium profile, aluminium sheet, aluminium composite panel, aluminium rim since 2009. Focus on South American market. Now we have over 400 sets mould of aluminium profile which can be satisfied with all kinds of design in such market.
Chemical Composition(%)
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Others |
Al |
|
6061 |
0.40-0.80 |
0.70 |
0.15-0.40 |
0.15 |
0.80-1.20 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
remainder |
|
6063 |
0.20-0.60 |
0.35 |
0.10 |
0.10 |
0.45-0.90 |
0.10 |
0.10 |
0.10 |
0.10 |
remainder |
Mechanical Property
|
Alloy |
Temper |
Tensile Strength |
Yield Strength |
Elongation |
|
6063 |
T5 |
>160Mpa |
>110Mpa |
>8% |
|
6063 |
T6 |
>205Mpa |
>180Mpa |
>8% |
|
6061 |
T6 |
>265Mpa |
>245Mpa |
>8% |
|
Anodized |
oxide layer (average thickness) |
AA10 |
≥10μm |
|
|
|
AA15 |
≥15μm |
|
|
sealing quality |
≤30mg/dm2 |
|
|
Electrophoretic Coating |
composite layer (average thickness) |
A |
≥21μm |
|
|
|
B |
≥16μm |
|
|
layer hardness |
≥3H |
|
|
|
gird test |
≥0 |
|
|
Powder Coating |
minimum local thickness |
≥40μm |
|
|
|
indentation hardness |
≥80 |
|
|
|
gird test |
≥0 |
|
Competitive Advantage:
1: More than 400 types moulds, can meet almost all kinds of design in South American market.
2: Good Quality Control,CE,ISO certificates approved.
3: Fast Delivery, Only 15 Days which is not easy achieve for other factory in China.
4: Expert export Package, perfect protection and full load the container without any space waste.
5: Quick Response, within 48 Hours after the complain or inquiry from customer.
6: No language problem, we have local agents in Columbia, Canada, Chile, Mexico.
Factory and equipments:
FAQ
How do I determine which products are suitable for a particular application?
MAXL’s sales engineers can assist you in determining the right product for your specific application.
Where can I get pricing, stock availability, lead time, and shipment date information on MAXL products?
Depending on the country where you are located, you can contact the local MAXL distributor .Or you may contact the MAXL directly at +86-0512-58975330 to reach a domestic sales engineer or our customer service department, or e-mail henry(at)maxlgroup.com.
Where can I get answers to technical questions and support if there is an issue with a process or with finished goods?
You can start by contacting your local MAXL distributor for specific product information. They can also refer you to one of our technical people at our Research & Development facilities.
Where and how do I order MAXL products?
Products can be ordered by contacting MAXL’s domestic customer service department at +85-0512-58975330 or e-mail henry@maxlgroup.com.
Does MAXL provide samples for evaluation purposes?
Yes. Product samples can be requested by customers for initial evaluations. Contact your local MAXL sales representative or MAXL customer service.
